Rear Stabilizer Bar Link (Sway Bar End Link) 6007100-00-A for TESLA Model S 2012–2021 | Rear Axle Left & Right (Both Sides) OEM Replacement – COWIN China TOP-QUALITY Auto Parts Supplier

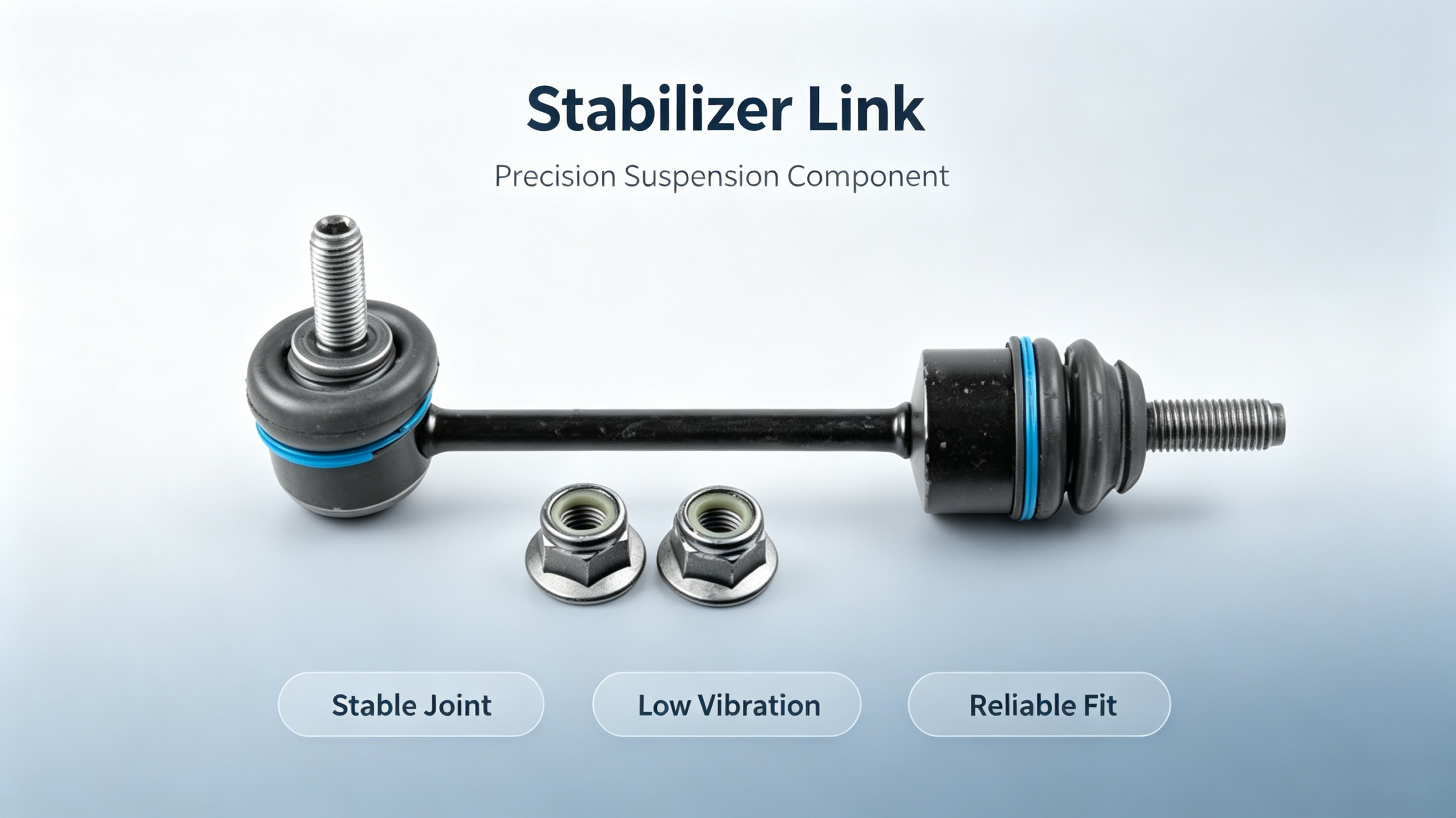

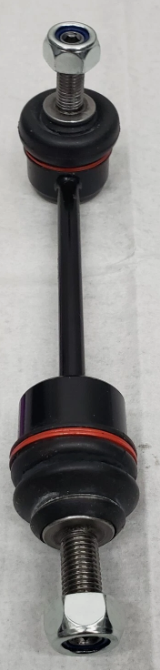

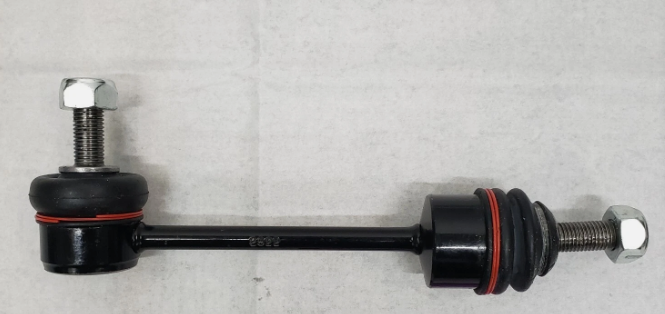

🛠️ Rear Stabilizer Bar Link – OEM 6007100-00-A (TESLA Model S 2012–2021 Rear Both Sides)

Restore quiet, flat cornering and eliminate rear suspension clunking with the COWIN OEM-Standard Rear Stabilizer Bar Link (6007100-00-A).
Precision-manufactured to match Tesla Model S rear sway bar specifications, this symmetrical end link connects the rear stabilizer bar to the suspension arm,
reducing body roll and maintaining correct suspension geometry with direct bolt-on fitment for pre-refresh Model S vehicles (2012–Jan 2021).

✅ Key Features & Benefits

• OEM Fitment: Direct replacement for 6007100-00-A, 600710000A – exact ~148–149mm length, M10 x 1.25 thread pitch and ball stud size for both sides.
• Vehicle Coverage: TESLA Model S (2012–January 31, 2021 all trims: 60/70/75/85/90/100/P85D/P100D/LR etc.) – Excludes Feb 2021+ Palladium Refresh & Plaid.
• Both Sides Same Part: Symmetrical design fits Rear Left (LH) AND Rear Right (RH) – no need to distinguish side-specific part numbers.
• Durable Construction: Powder-coated steel rod + sealed pre-greased ball joints + anti-corrosion coating (≥96h salt spray test).
• Complete Assembly: Supplied with pre-installed rubber dust boots and locking nuts for full service replacement (bolts/sleeves typically reuse OEM).
• 100% Tested: Validated for rotational torque, pull-out strength and sealing performance under simulated load conditions.

🚗 Vehicle Compatibility

⚙️ Technical Specifications

• Product: Rear Stabilizer Bar Link / Sway Bar End Link (Coupling Rod)
• Condition: Brand NEW (Sold Individually)
• OE Part Number: 6007100-00-A, 600710000A
• Cross Reference: Delphi TC6965, Febi 175622, Lemförder 4263201, Moog K750965, FAG 818 0684 10, ReinhoCH RH07-6008
• Side: Both Sides (LH + RH Symmetrical / Interchangeable)
• Overall Length: ~148–149 mm
• Thread Size: M10 x 1.25
• Material: High-Strength Powder-Coated Steel
• Ball Joint: Sealed, Pre-Greased (No Grease Fitting), Heat-Treated Stud
• Dust Boot: Premium Rubber, Weather-Sealed (Pre-installed)
• Surface Treatment: Zinc Plating + Powder Coating (≥96h Salt Spray)
• Installation: Direct Bolt-On / Plug & Play
• Hardware: Locking Nuts Included (Reuse OEM bolts/sleeves if applicable)
• Quality: 100% Dimensional & Torque Tested (IATF16949 Process)

🛠️ Installation Note

Professional installation is recommended for suspension components.
Support the vehicle securely on a lift or jack stands before disassembly; enable Jack Mode on the touchscreen (Controls > Service > Jack Mode).
This part fits BOTH rear left and right sides – confirm quantity (2 pcs recommended per axle) before ordering.
Important: Support the stabilizer bar to neutralize preload before removing/installing the end link.
Counter-hold the ball stud (typically 5mm or 6mm hex) while loosening/tightening the nut (typically 14mm or 15mm) to prevent stud rotation.
Final torque should be applied at ride height (vehicle supported by wheels on ground or suspension loaded) to avoid premature bushing/ball joint wear.
Reference torque: ~70 Nm (51.6 ft-lbs) depending on Tesla service manual spec; always use new lock nuts.
Although an alignment is generally not required for sway bar links alone, a suspension inspection and alignment check is recommended after any chassis work.
Recheck hardware torque after initial 100 miles (160 km) of driving.

🏭 Why Choose COWIN Auto Parts?

COWIN (Gaoyun) is a professional Chinese manufacturer and supplier of high-precision automotive chassis & suspension components.
Our Tesla Model S stabilizer bar links are produced under IATF16949-certified processes, with precision CNC machining,
induction-hardened ball studs and rigorous lifecycle testing to meet or exceed OEM suspension performance standards for global EV aftermarket clients.
