Air Con Compressor/Pump 1K0820803S PXE16 8680P VW Audi Seat Skoda

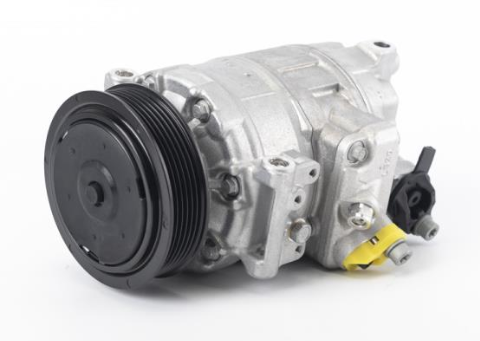

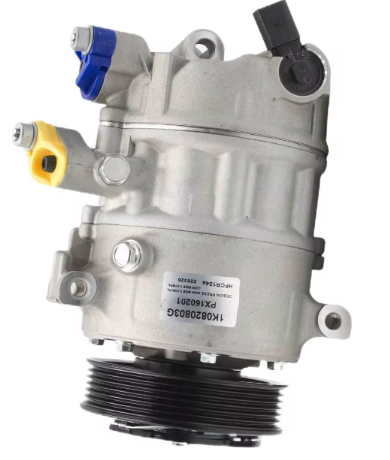

AC Compressor/Pump – 1K0820803S / PXE16 / 8680P
OEM-standard Sanden PXE16 A/C compressor for VW, Audi, Seat, Skoda (VAG Group).
Compressor Type: Sanden PXE16 | Voltage: 12V | Pulley: 6-Groove (PV6 / 6PK) ~110mm
Direct replacement, clutch included, compatible with OE 1K0820803S, 8680P, 1601, 8675, 8681.
Refrigerant: R134a | Oil: PAG 46 (SP-10).

Get Instant Quotes

Air Con Compressor/Pump 1K0820803S PXE16 8680P for VW Audi Seat Skoda | Sanden PXE16 OEM Replacement – COWIN China TOP-QUALITY Auto Parts Supplier



 AC Compressor – Sanden PXE16 (VW Audi Seat Skoda VAG Group)

Restore factory-level cabin cooling with the COWIN OEM-Standard Sanden PXE16 AC Compressor.
Engineered to match OE specifications for VAG Group platforms (1K chassis-based models), this unit delivers
stable displacement, low-noise operation and direct bolt-on fitment without modifications.

✅ Key Features & Benefits

  • OEM Fitment: Direct replacement for 1K0820803S, 8680P and cross-referenced Sanden PXE16 series (1601, 8675, 8681, 4573, etc.).
  • VAG Coverage: Compatible with VW Golf V/VI, Passat B6/B7, Jetta, Touran, Caddy, Audi A3 8P, Seat Leon/Altea, Skoda Octavia II/Superb II, etc.
  • Plug & Play: Complete assembly with PV6 pulley, electromagnetic clutch and mounting points—no fabrication required.
  • Efficient Cooling: PXE16 piston design optimized for 1.6L–2.0L TDI & TSI A/C loads with rapid recovery.
  • 100% Tested: Each unit validated for internal pressure, vacuum retention, clutch engagement and operational noise.

🚗 Vehicle Compatibility (Partial Reference)

Brand Model Chassis / Platform Engine Year Range
Volkswagen Golf V / VI, Jetta, Passat B6/B7, Touran, Caddy, Eos, Tiguan 1K / 5K / 3C / 1T / 2K 1.6 / 1.9 / 2.0 TDI & TSI ~2003–2013
Audi A3 (8P), TT (8J) 8P / 8J 1.6 / 1.9 / 2.0 TDI & TSI ~2003–2013
Seat Leon, Altea, Toledo, Alhambra 1P / 5P / 7M 1.6 / 1.9 / 2.0 TDI & TSI ~2004–2015
Skoda Octavia II, Superb II, Yeti 1Z / 3T / 5L 1.6 / 1.9 / 2.0 TDI & TSI ~2004–2015

⚙️ Technical Specifications

  • Product: AC Compressor / Air Con Pump (Automotive A/C)
  • OE Part Number: 1K0820803S, 1K0820803G, 1K0820803Q, 1K0820859F, 1K0820808B
  • Sanden Ref: 8680P, 8680, 8681, 8681P, 8675, 8676, 1601, 1615, 4573, 1711
  • Compressor Type: Sanden PXE16 (PXV16)
  • Voltage: 12V
  • Pulley: 6-Groove (PV6 / 6PK), ~110mm Diameter
  • Clutch: Included & Pre-assembled
  • Refrigerant: R134a
  • Compressor Oil: PAG 46 (SP-10, ≈110–150ml)
  • Mounting: Direct Tangent / Flange Mount
  • Installation: Direct Bolt-On / Plug & Play
  • Quality: 100% Pressure, Leak & Performance Tested

🛠️ Installation Note

Disconnect the vehicle battery before removal to protect the ECU and wiring.
Recover refrigerant using certified A/C recovery equipment—do not vent R134a.
If the old compressor failed internally, thoroughly flush condenser, evaporator and lines; replace receiver drier / accumulator and expansion valve (TXV).
Evacuate system under vacuum for ≥30 minutes and confirm stable vacuum before recharging to spec.
Check clutch engagement, high/low side pressures and vent temperature after installation.

🏭 Why Choose COWIN Auto Parts?

COWIN (Gaoyun) is a professional Chinese manufacturer and supplier of high-precision automotive components.
Our Sanden PXE16 compressors for VAG Group vehicles are produced under strict QC, simulating real-world
load conditions to ensure sealing integrity, efficient cooling and long-term durability for global aftermarket clients.
