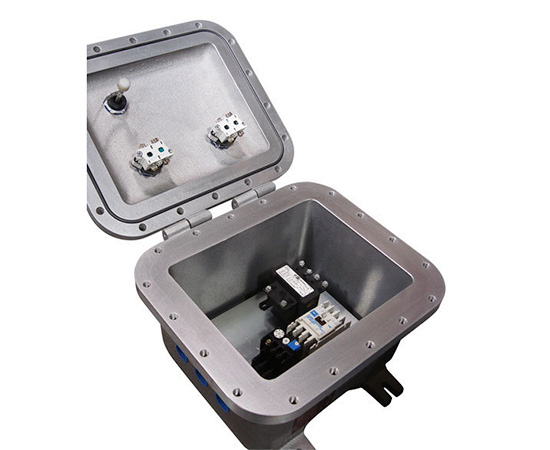

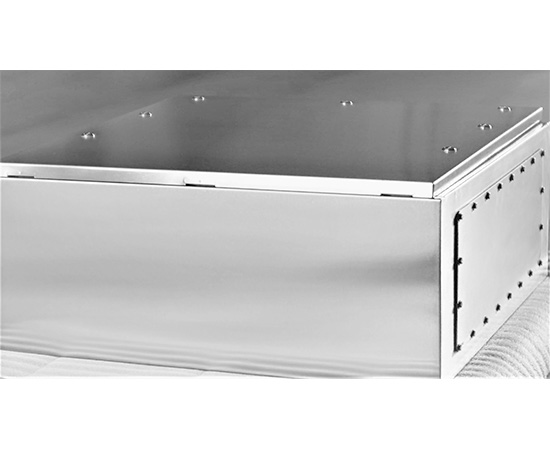

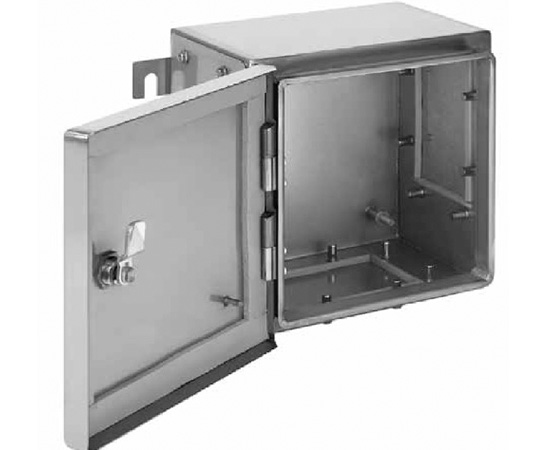

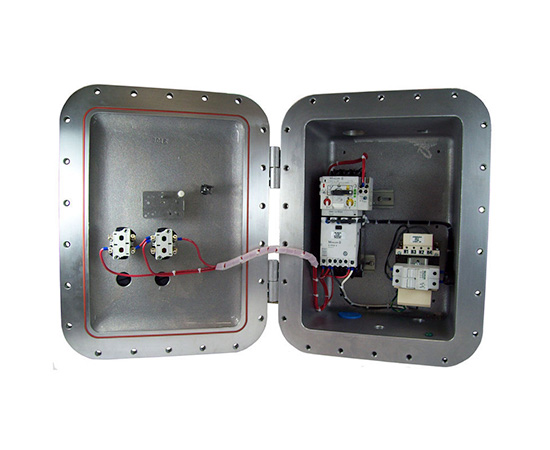

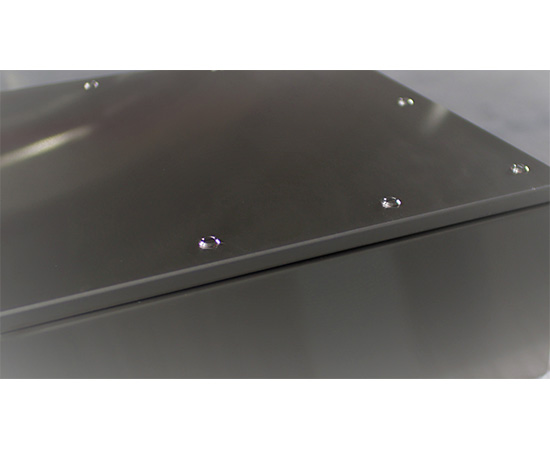

ATEX Enclosures (Copy)

All equipment intended for use in potentially explosive locations and which are capable of causing an explosion through their own potential sources of ignition.

Protective systems, defined as units intended to halt incipient explosions immediately and/or to limit the effective range of explosion flames and explosion pressures, and intended for use in potentially explosive locations.

Components, defined as any item essential to the safe functioning of equipment and protective systems but with no autonomous function.

Get Instant Quotes
PART NO. (AE Cabinet)
 Product Size (mm) Product Size (In.) Mounting plate size (mm) Mounting plate size (In.) Packing size (mm)
Height Width Depth Height Width Depth Height Width Height Width Height Width Depth
AE403021-S1-N13 400 300 210 16 12 8 310 250 12 10 450 350 260
AE402026-S1-N13 400 200 260 16 8 10 310 150 12 6 450 250 310
AE404016-S1-N13 400 400 160 16 16 6 310 350 12 14 450 450 210
AE403021-M1-N13 400 300 210 16 12 8 310 250 12 10 450 350 260
AE402026-M1-N13 400 200 260 16 8 10 310 150 12 6 450 250 310
AE404016-M1-N13 400 400 160 16 16 6 310 350 12 14 450 450 210
AE403021-C1-N13 400 300 210 16 12 8 310 250 12 10 450 350 260
AE402026-C1-N13 400 200 260 16 8 10 310 150 12 6 450 250 310
AE404016-C1-N13 400 400 160 16 16 6 310 350 12 14 450 450 210
AE504021-S1-N13 500 400 210 20 16 8 410 350 16 14 550 450 260
AE503026-S1-N13 500 300 260 20 12 10 410 250 16 10 550 350 310
AE505016-S1-N13 500 500 160 20 20 6 410 450 16 18 550 550 210
AE504021-M1-N13 500 400 210 20 16 8 410 350 16 14 550 450 260
AE503026-M1-N13 500 300 260 20 12 10 410 250 16 10 550 350 310
AE505016-M1-N13 500 500 160 20 20 6 410 450 16 18 550 550 210
AE504021-C1-N13 500 400 210 20 16 8 410 350 16 14 550 450 260
AE503026-C1-N13 500 300 260 20 12 10 410 250 16 10 550 350 310
AE505016-C1-N13 500 500 160 20 20 6 410 450 16 18 550 550 210
AE504021-S1-N13 500 500 210 20 20 8 410 450 16 18 550 550 260
AE503026-S1-N13 500 400 260 20 16 10 410 350 16 14 550 450 310
AE505016-S1-N13 500 600 160 20 23 6 410 550 16 21 550 650 210
AE504021-M1-N13 500 500 210 20 20 8 410 450 16 18 550 550 260
AE503026-M1-N13 500 400 260 20 16 10 410 350 16 14 550 450 310
AE505016-M1-N13 500 600 160 20 23 6 410 550 16 21 550 650 210
AE504021-C1-N13 500 500 210 20 20 8 410 450 16 18 550 550 260
AE503026-C1-N13 500 400 260 20 16 10 410 350 16 14 550 450 310
AE505016-C1-N13 500 600 160 20 23 6 410 550 16 21 550 650 210
AE604021-S1-N13 600 400 210 23 16 8 510 350 20 14 650 450 260
AE603026-S1-N13 600 300 260 23 12 10 510 250 20 10 650 350 310
AE605016-S1-N13 600 500 160 23 20 6 510 450 20 18 650 550 210
AE604021-M1-N13 600 400 210 23 16 8 510 350 20 14 650 450 260
AE603026-M1-N13 600 300 260 23 12 10 510 250 20 10 650 350 310
AE605016-M1-N13 600 500 160 23 20 6 510 450 20 18 650 550 210
AE604021-C1-N13 600 400 210 23 16 8 510 350 20 14 650 450 260
AE603026-C1-N13 600 300 260 23 12 10 510 250 20 10 650 350 310
AE605016-C1-N13 600 500 160 23 20 6 510 450 20 18 650 550 210
AE605021-S1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE604026-S1-N13 600 400 260 23 16 10 510 350 20 14 650 450 310
AE606016-S1-N13 600 600 160 23 23 6 510 550 20 21 650 650 210
AE605021-M1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE604026-M1-N13 600 400 260 23 16 10 510 350 20 14 650 450 310
AE606016-M1-N13 600 600 160 23 23 6 510 550 20 21 650 650 210
AE605021-C1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE604026-C1-N13 600 400 260 23 16 10 510 350 20 14 650 450 310
AE606016-C1-N13 600 600 160 23 23 6 510 550 20 21 650 650 210
AE606016-S1-N13 600 600 210 23 23 8 510 550 20 21 650 650 260
AE605021-S1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE607026-S1-N13 600 700 260 23 27 10 510 650 20 25 650 750 310
AE606016-M1-N13 600 600 210 23 23 8 510 550 20 21 650 650 260
AE605021-M1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE607026-M1-N13 600 700 260 23 27 10 510 650 20 25 650 750 310
AE606016-C1-N13 600 600 210 23 23 8 510 550 20 21 650 650 260
AE605021-C1-N13 600 500 210 23 20 8 510 450 20 18 650 550 260
AE607026-C1-N13 600 700 260 23 27 10 510 650 20 25 650 750 310
AE705021-S1-N13 700 500 210 27 20 8 610 450 24 18 750 550 260
AE704026-S1-N13 700 400 260 27 16 10 610 350 24 14 750 450 310
AE706016-S1-N13 700 600 160 27 23 6 610 550 24 21 750 650 210
AE705021-M1-N13 700 500 210 27 20 8 610 450 24 18 750 550 260
AE704026-M1-N13 700 400 260 27 16 10 610 350 24 14 750 450 310
AE706016-M1-N13 700 600 160 27 23 6 610 550 24 21 750 650 210
AE705021-C1-N13 700 500 210 27 20 8 610 450 24 18 750 550 260
AE704026-C1-N13 700 400 260 27 16 10 610 350 24 14 750 450 310
AE706016-C1-N13 700 600 160 27 23 6 610 550 24 21 750 650 210
AE706021-S1-N13 700 600 210 27 23 8 610 550 24 21 750 650 260
AE705026-S1-N13 700 500 260 27 20 10 610 450 24 18 750 550 310
AE707016-S1-N13 700 700 160 27 27 6 610 650 24 25 750 750 210
AE706021-M1-N13 700 600 210 27 23 8 610 550 24 21 750 650 260
AE705026-M1-N13 700 500 260 27 20 10 610 450 24 18 750 550 310
AE707016-M1-N13 700 700 160 27 27 6 610 650 24 25 750 750 210
AE706021-C1-N13 700 600 210 27 23 8 610 550 24 21 750 650 260
AE705026-C1-N13 700 500 260 27 20 10 610 450 24 18 750 550 310
AE707016-C1-N13 700 700 160 27 27 6 610 650 24 25 750 750 210
AE707021-S1-N13 700 700 210 27 27 8 610 650 24 25 750 750 260
AE706026-S1-N13 700 600 260 27 23 10 610 550 24 21 750 650 310
AE708016-S1-N13 700 800 160 27 31 6 610 750 24 29 750 850 210
AE707021-M1-N13 700 700 210 27 27 8 610 650 24 25 750 750 260
AE706026-M1-N13 700 600 260 27 23 10 610 550 24 21 750 650 310
AE708016-M1-N13 700 800 160 27 31 6 610 750 24 29 750 850 210
AE707021-C1-N13 700 700 210 27 27 8 610 650 24 25 750 750 260
AE706026-C1-N13 700 600 260 27 23 10 610 550 24 21 750 650 310
AE708016-C1-N13 700 800 160 27 31 6 610 750 24 29 750 850 210
AE805021-S1-N13 800 500 210 31 20 8 710 450 28 18 850 550 260
AE804026-S1-N13 800 400 260 31 16 10 710 350 28 14 850 450 310
AE806016-S1-N13 800 600 160 31 23 6 710 550 28 21 850 650 210
AE805021-M1-N13 800 500 210 31 20 8 710 450 28 18 850 550 260
AE804026-M1-N13 800 400 260 31 16 10 710 350 28 14 850 450 310
AE806016-M1-N13 800 600 160 31 23 6 710 550 28 21 850 650 210
AE805021-C1-N13 800 500 210 31 20 8 710 450 28 18 850 550 260
AE804026-C1-N13 800 400 260 31 16 10 710 350 28 14 850 450 310
AE806016-C1-N13 800 600 160 31 23 6 710 550 28 21 850 650 210
AE806021-S1-N13 800 600 210 31 23 8 710 550 28 21 850 650 260
AE805026-S1-N13 800 500 260 31 20 10 710 450 28 18 850 550 310
AE807016-S1-N13 800 700 160 31 27 6 710 650 28 25 850 750 210
AE806021-M1-N13 800 600 210 31 23 8 710 550 28 21 850 650 260
AE805026-M1-N13 800 500 260 31 20 10 710 450 28 18 850 550 310
AE807016-M1-N13 800 700 160 31 27 6 710 650 28 25 850 750 210
AE806021-C1-N13 800 600 210 31 23 8 710 550 28 21 850 650 260
AE805026-C1-N13 800 500 260 31 20 10 710 450 28 18 850 550 310
AE807016-C1-N13 800 700 160 31 27 6 710 650 28 25 850 750 210
AE807021-S1-N13 800 700 210 31 27 8 710 650 28 25 850 750 260
AE806026-S1-N13 800 600 260 31 23 10 710 550 28 21 850 650 310
AE808016-S1-N13 800 800 160 31 31 6 710 750 28 29 850 850 210
AE807021-M1-N13 800 700 210 31 27 8 710 650 28 25 850 750 260
AE806026-M1-N13 800 600 260 31 23 10 710 550 28 21 850 650 310
AE808016-M1-N13 800 800 160 31 31 6 710 750 28 29 850 850 210
AE807021-C1-N13 800 700 210 31 27 8 710 650 28 25 850 750 260
AE806026-C1-N13 800 600 260 31 23 10 710 550 28 21 850 650 310
AE808016-C1-N13 800 800 160 31 31 6 710 750 28 29 850 850 210
AE808021-S1-N13 800 800 210 31 31 8 710 750 28 29 850 850 260
AE807026-S1-N13 800 700 260 31 27 10 710 650 28 25 850 750 310
AE809016-S1-N13 800 900 160 31 35 6 710 850 28 33 850 950 210
AE808021-M1-N13 800 800 210 31 31 8 710 750 28 29 850 850 260
AE807026-M1-N13 800 700 260 31 27 10 710 650 28 25 850 750 310
AE809016-M1-N13 800 900 160 31 35 6 710 850 28 33 850 950 210
AE808021-C1-N13 800 800 210 31 31 8 710 750 28 29 850 850 260
AE807026-C1-N13 800 700 260 31 27 10 710 650 28 25 850 750 310
AE809016-C1-N13 800 900 160 31 35 6 710 850 28 33 850 950 210
AE906021-S1-N13 900 600 210 35 23 8 810 550 32 21 950 650 260
AE905026-S1-N13 900 500 260 35 20 10 810 450 32 18 950 550 310
AE907016-S1-N13 900 700 160 35 27 6 810 650 32 25 950 750 210
AE906021-M1-N13 900 600 210 35 23 8 810 550 32 21 950 650 260
AE905026-M1-N13 900 500 260 35 20 10 810 450 32 18 950 550 310
AE907016-M1-N13 900 700 160 35 27 6 810 650 32 25 950 750 210
AE906021-C1-N13 900 600 210 35 23 8 810 550 32 21 950 650 260
AE905026-C1-N13 900 500 260 35 20 10 810 450 32 18 950 550 310
AE907016-C1-N13 900 700 160 35 27 6 810 650 32 25 950 750 210
AE907021-S1-N13 900 700 210 35 27 8 810 650 32 25 950 750 260
AE906026-S1-N13 900 600 260 35 23 10 810 550 32 21 950 650 310
AE908016-S1-N13 900 800 160 35 31 6 810 750 32 29 950 850 210
AE907021-M1-N13 900 700 210 35 27 8 810 650 32 25 950 750 260
AE906026-M1-N13 900 600 260 35 23 10 810 550 32 21 950 650 310
AE908016-M1-N13 900 800 160 35 31 6 810 750 32 29 950 850 210
AE907021-C1-N13 900 700 210 35 27 8 810 650 32 25 950 750 260
AE906026-C1-N13 900 600 260 35 23 10 810 550 32 21 950 650 310
AE908016-C1-N13 900 800 160 35 31 6 810 750 32 29 950 850 210
AE908021-S1-N13 900 800 210 35 31 8 810 750 32 29 950 850 260
AE907026-S1-N13 900 700 260 35 27 10 810 650 32 25 950 750 310
AE909016-S1-N13 900 900 160 35 35 6 810 850 32 33 950 950 210
AE908021-M1-N13 900 800 210 35 31 8 810 750 32 29 950 850 260
AE907026-M1-N13 900 700 260 35 27 10 810 650 32 25 950 750 310
AE909016-M1-N13 900 900 160 35 35 6 810 850 32 33 950 950 210
AE908021-C1-N13 900 800 210 35 31 8 810 750 32 29 950 850 260
AE907026-C1-N13 900 700 260 35 27 10 810 650 32 25 950 750 310
AE909016-C1-N13 900 900 160 35 35 6 810 850 32 33 950 950 210
